HUKOER Professional Car Paint Spray Gun Kit TES 1.3mm Nozzle Paint Sprayer Forged Gun Body High Atomization Design with 600cc Plastic Cup

Price: £84.90
(as of Jan 06,2022 16:29:30 UTC – Details)

Product Description

Air Spray Gun

Specifications

Air supply connection: universal 1/4” BSP and 1/4” NPS male
Maximum static air inlet pressure: P1=12 bar (175 psi)
Fluid supply connection:3/8” BSP
Service temperature:0-40℃
Dimension: 20×15 cm
Weight: about 1.5 kg
Nozzle size: 1.3 mm

Spray Effect

Spray distance: 10-21 cm
Spray width: about. 30 cm

Kit Contents

1×Spray Gun
1×GFC Cup
1×Cup Filter
1×Spanner(10mm and 14mm A/F)
1×Torx/Flat blade screwdriver
1×Cleaning brush
1×Service bulletin

Material of Construction

Gun body: Anodized Aluminum
Air cup:Nickel plated brass
Fluid nozzle, fluid needle, fluid inlet, trigger stud: Stainless steel
Spray head: Anodized Aluminum
Springs, clips, screws: Stainless steel
Seals, gaskets: Solvent resistant
Trigger: Chrome plated steel
Air inlet, body bushing, spreader valve body, air valve nut, air cup retaining ring, knobs: Chrome plated brass
Air valve assembly: Stainless steel, HPDE

Top Technology Air Cap

360° twist to control the spraying direction.
Stainless steel nozzle and needle.
Corrosion-resistant for water based paint.

Paint Adjustments

Pattern Adjust (A): Loosen for large area spraying with fan shape; Tighten for small area spraying with point shape.
Paint Flow Adjust (B): Tighten for less paint; Loosen for more paint.

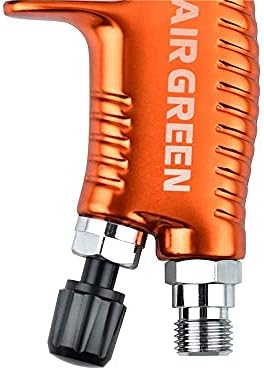

Air Supply Connection

Air Pressure Adjustment (C): 2.5 bar is suggested for saving paint, Maxi. air pressure 12 bar.
Air Inlet (D): Connect with air compressor by air hose, universal 1/4” BSP and 1/4” NPS male.

Two Step Trigger

Press the first to blow off the dust and the further step to blow off the paint.

Super Quality

Professional Forged Gun Body

It is not an ordinary casting process, the gun body uses the forging process, and it will not jump paint for a long time.
Durable using by special finish.
Ergonomic design handle.

Salient Features

5 cm Width, wide enough, the air is split better, the spray effect is more delicate and even.
Air Curtain Design, minimize overspray and pollution with superior transfer efficiency to reduce paint consumption.

Application

Automotive painting
Wall painting
Outdoor painting
Furniture surface treatment
…

Size
20*15cm
25*14cm
20*15cm

Nozzle holes
7
11
15

Nozzle diameter
1.4mm/1.7mm/2.0mm
1.4mm
1.3mm

Spray width
25cm
28cm
30cm

Spray distance
20-24cm
10-21cm
10-21cm

Forged gun body
No
✓
✓

Application
Automotive primer, ordinary furniture
Automotive topcoat, high-grade furniture finish
Automotive topcoat, high-grade furniture finish

Excellent Spraying Efficiency:Transfer efficiency is higher than 69%
Environmental protection concept:There is less overspray in the air and protects your health.
Advanced Spray Gun: Forged body provides longer tool life and anodized body for corrosion protection with internal coated passages, Extremely delicate mirror surface treatment.
It can use from oil-based materials to water-based materials like – chalk type paint, milk paint, latex paints, enamels, primers, clear sealer, polyurethane, stain and varnish, create wonders on any base with the perfect finishing touch!
